|Part Number:||P/N: 069-1025-00 - 720 COMM channels|
|Part Number:||P/N: 069-1025-02 - 720 COMM channels, wider 50 kHz receiver selectivity|
|Part Number:||P/N: 069-1025-20 - 760 COMM channels|
|Part Number:||P/N: 069-1025-22 - 760 COMM channels, wider 50 kHz receiver selectivity|
|Part Number:||We do not sell radios with 50 kHz receiver selectivity. If you need a replacement, we would send one with standard 25 kHz selectivity.|
|Condition:||Serviceable (Certified Used)|
|Included:||Rack & Connector (if needed), 90 Day Warranty|
|Comments:||This version of the KX-165 does not have Glideslope capability.|
|Comments:||This radio tunes 760 COMM channels. We may be able to supply a less-expensive 720 COMM channel version of this KX-165, but please ask. Most KX-165 radios have 760 COMM channels, and that is the version we usually have in stock.|
|Comments:||The LED Display Upgrade improves readability, and could last for the life of the radio. We will install a New LED Display in this radio before shipping it to you. (Please allow 3-6 weeks.)|
|Comments:||If you plan to use this radio to replace an already-installed KX-165, please indicate that you do not need the Rack & Connector. This will save you money, and we will save the installation hardware for customers who need it.|

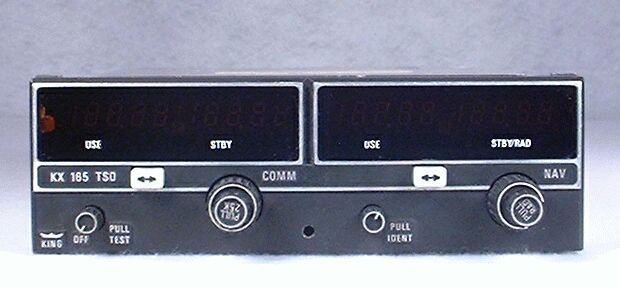

The King KX-165 NAV/COMM is very similar to the familiar KX-155, but with an important difference. Unlike the KX-155, the KX-165 does contain an internal VOR/LOC Converter. This means that the KX-165 may be used to directly drive the KI-525/525A HSI (part of a KCS-55/55A system). (This KX-165 would typically be the #2 radio, with the #1 radio offering Glideslope capability.)
The KX-165 has King's easy-to-read, bright gas-discharge display. This display shows simultaneous active and standby frequencies for both the NAV and COMM sides. The KX-165 NAV/COMM tunes in 200 NAV channels and 760 COMM channels.
As a nice "extra" feature, the KX-165 can display the current radial from the active VOR. This information may be displayed instead of the standby NAV frequency.
This version does not include a Glideslope Receiver.
The King KX-165 also features:
- Solid state design
- 10 watts transmit power
- Push button frequency flip-flop
The "non-Glideslope" KX-165 may be used with the following King Indicator:
We are often asked about adding Glideslope capability to a KX-165. Unfortunately, the KX-165 will not work with any external Glideslope Receivers because it does not output Glideslope channeling. Without this information, the Glideslope Receiver would not know which of the Glideslope frequencies to tune.
If you want Glideslope with a KX-165, you must use one with the Glideslope board installed. We generally recommend an exchange in this situation.
