GDL-82 ADS-B Out Transmitter with WAAS GPS (FACTORY NEW)
Part Number: | P/N: 010-01560-31 - Entire Kit |
Part Number: | P/N: 011-03946-40 - GDL-82 Radio |
Part Number: | P/N: 013-00235-00 - GA-35 WAAS GPS Antenna |
Condition: | Factory New |
Voltage: | 14/28 V |

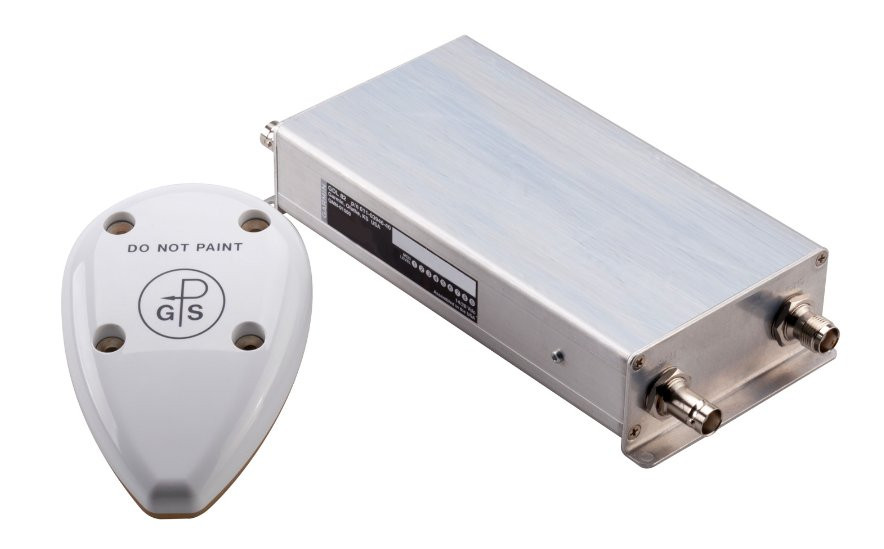

Included: | GDL-82, GA-35 WAAS GPS Antenna, Connector Kit, Garmin Factory Warranty |
ADS-B Out: | 978 MHz Universal Access Transceiver (978 UAT) |
Product Description
Many of our customers are looking for affordable solutions to meet the ADS-B Out requirement. If both of these statements describe your avionics, the Garmin GDL-82 may be the right solution for you:
- You have a reliable Transponder. It does not offer ADS-B, but it otherwise meets your needs.
- You do not have a WAAS GPS Navigator installed in your panel.
The GDL-82 is designed for exactly this situation. It meets the ADS-B Out requirement without any panel modifications.
Any ADS-B Out solution needs a WAAS GPS position fix to transmit. The GDL-82 includes both an internal WAAS GPS Receiver and an external WAAS GPS antenna. This allows the GDL-82 to determine your position, then transmit it to the ADS-B system.
The GDL-82 is installed between your existing Transponder and your Transponder Antenna. ADS-B requires your Out Transmitter to squawk the same code as your Transponder. Garmin's automatic squawk code feature synchronizes the ADS-B code with your Transponder code. You simply enter the code once on the Transponder, as you do today. The ADS-B Out transmission is transparent and in the background. There is no need to install a second ADS-B control panel, which saves money and panel space.
The GDL-82's output is sent along the antenna cable, and is broadcast by your current Transponder Antenna. Your position is then available to ATC and every aircraft with an ADS-B In Receiver.
The GDL-82 offers 978 UAT transmission, making it a valid choice up to 18,000 feet.
While the GDL-82 does not offer ADS-B In reception, it may be used with a portable ADS-B In Receiver such as the Garmin GDL-50 or GDL-52. This combination is a complete, low-cost ADS-B In/Out solution which would display subscription-free Traffic and Weather on a portable display.
