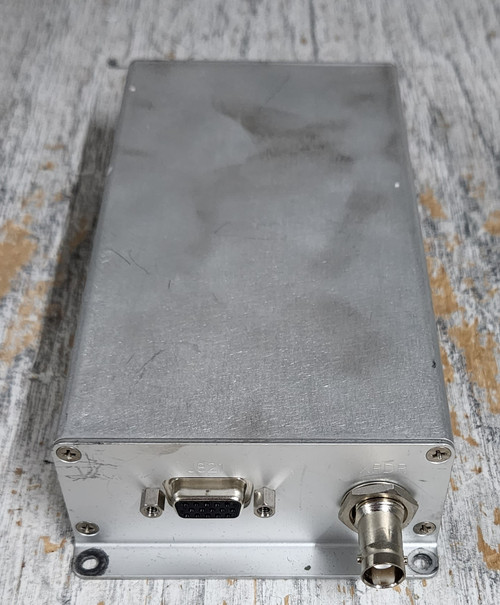

GDL-82 ADS-B Out Transmitter with WAAS GPS


GDL-82 ADS-B Out Transmitter with WAAS GPS

Product Information
Part Number: P/N: 011-03946-40 - GDL-82 Radio
Part Number: P/N: 013-00235-00 - GA-35 WAAS GPS Antenna (if needed)
Condition: Serviceable (Certified Used)
Certification: 8130-3
Voltage: 14/28 V
Included: Connector, 90 Day Warranty
Included: GA-35 WAAS GPS Antenna included with WAAS GPS Antenna option
ADS-B Out: 978 MHz Universal Access Transceiver (978 UAT)

Product Description

This is the certified used (Serviceable) version of the GDL-82.  It defaults to include the required GA-35 WAAS GPS Antenna (so the GDL-82 may determine its position).  If you already have a GA-35 to use with this radio, please select "No" to the WAAS GPS Antenna question to save money.

Many of our customers are looking for affordable solutions to meet the ADS-B Out requirement. If both of these statements describe your avionics, the Garmin GDL-82 may be the right solution for you:

  • You have a reliable Mode C Transponder. It does not offer ADS-B, but it otherwise meets your needs.  (Please note that the GDL-82 should not be installed with a Mode S Transponder.)
  • You do not have a WAAS GPS Navigator installed in your panel.

The GDL-82 is designed for exactly this situation. It meets the ADS-B Out requirement without any panel modifications.

Any ADS-B Out solution needs a WAAS GPS position fix to transmit. The GDL-82 includes both an internal WAAS GPS Receiver and an external WAAS GPS antenna. This allows the GDL-82 to determine your position, then transmit it to the ADS-B system.

The GDL-82 is installed between your existing Transponder and your Transponder Antenna. ADS-B requires your Out Transmitter to squawk the same code as your Transponder. Garmin's automatic squawk code feature synchronizes the ADS-B code with your Transponder code. You simply enter the code once on the Transponder, as you do today. The ADS-B Out transmission is transparent and in the background. There is no need to install a second ADS-B control panel, which saves money and panel space.

The GDL-82's output is sent along the antenna cable, and is broadcast by your current Transponder Antenna. Your position is then available to ATC and every aircraft with an ADS-B In Receiver.

The GDL-82 offers 978 UAT transmission, making it a valid choice up to 18,000 feet.

While the GDL-82 does not offer ADS-B In reception, it may be used with a portable ADS-B In Receiver such as the Garmin GDL-50 or GDL-52. This combination is a complete, low-cost ADS-B In/Out solution which would display subscription-free Traffic and Weather on a portable display.

If you have any questions about this item, please click Ask us about the Garmin GDL-82 ADS-B Out Transmitter with WAAS GPS to send us an email.
